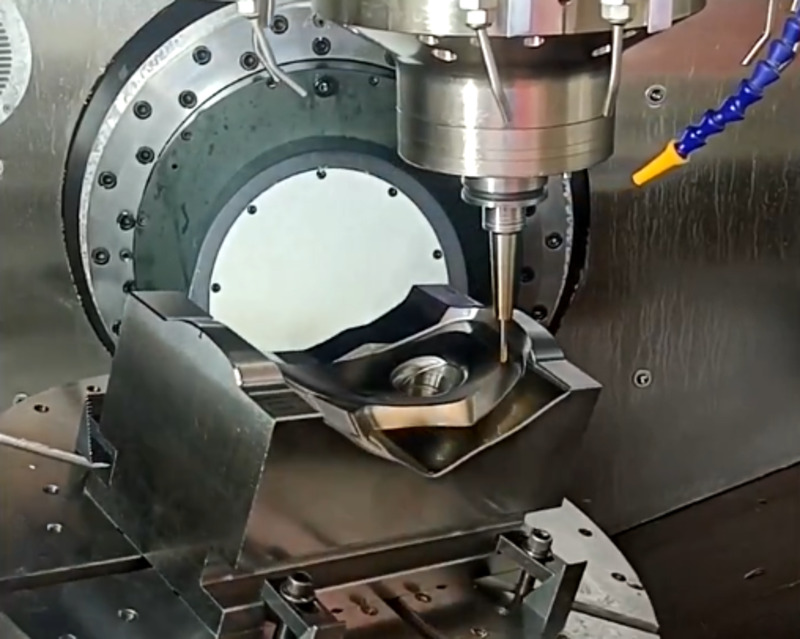

Advantages and Disadvantages of CNC 5-Axis Machining

Five-axis machining is one of the top technologies in CNC machining. It adds two rotational axes (typically called A, B, or C axes) to the traditional three linear axes (X, Y, Z), allowing the cutting tool to approach the workpiece from five directions. This gives it unparalleled advantages in manufacturing complex parts, but it also comes with significant challenges.

Significant Advantages of CNC 5-Axis Machining

1. Complete Complex Machining in a Single Setup

● Primary Advantage: This is the most prominent benefit of 5-axis machining. The workpiece only needs to be set up once to machine all five sides—and even complex spatial surfaces—except the bottom. This eliminates errors caused by multiple re-clamping, greatly improving the part's positional accuracy and geometric accuracy.

2. Increased Efficiency and Shorter Production Cycles

● Reduced Setup Time: Saves the time required for multiple clamping, debugging, and alignment steps.

● Avoid Multiple Tool Setting: A single setup means only one tool setting is required, saving auxiliary time.

3. Greatly Enhanced Capability for Complex Parts

● Easily handles complex spatial surfaces and irregular-shaped parts that are impossible for 3-axis machines to process, such as turbine blades, impellers, propellers, precision molds, human bones/implants, and high-value sculptures.

4. Achieve Superior Surface Finish

● By adjusting the tool axis orientation, the cutting edge of the tool (the center of the ball-nose endmill) can be used instead of its side, where the cutting speed is near zero, maintaining the optimal cutting point (point of maximum linear speed). This results in a higher surface finish and reduces the need for subsequent manual polishing.
